新兴射台架构

State-of-art injection unit designs

● 机构省油的suv、刚需好的新式射台机构

● 射台版块化方案  ，数值射台换个不便  ，足够区别的产品定型使用需求  ，变短交期期

● 双缸射移+料筒作为支撑  ，料筒防悬垂调高应用程序  ，调高简单的  ，射台电脑运行稳定的  ，剂量合理  ，用于乐竞·体育APP下载安装铸造压延成型；高效果度导轨架  ，射台出现变形小  ，射台三维旋转替换挤出机螺杆

●Compact structure and high-rigidity injection unit

●Modular designs to allow mix-and-match with unparalaled flexblity between injection and clamping units for catering wide range of injection shot weights and moulding needs.Short machin eproduction lead time is realised.

●Double cyinder injection carriage and barrel support to avoid vertical posilional shifts and enable easy adjustments.

●Stable injection unit movements and accurate volumetric injoction controls to make sure the parts are pracisely moulded.High-strength guide rail to reduce delomation of the injection unit.Maintenance work at the screw and barrel is soviceman-fiendly due t othe swiveling injection design.

高响应油路控制阀

High-response proportional valve

● 液压系统使用高响应的比例阀  ，提乐竞·体育APP下载安装合模精度和稳定性   ，刹车响应时间缩短

The hydraulic system uses a high-response proportional valve to improve the accuracy and stability of mould open/close.This also shortens the brake response time.

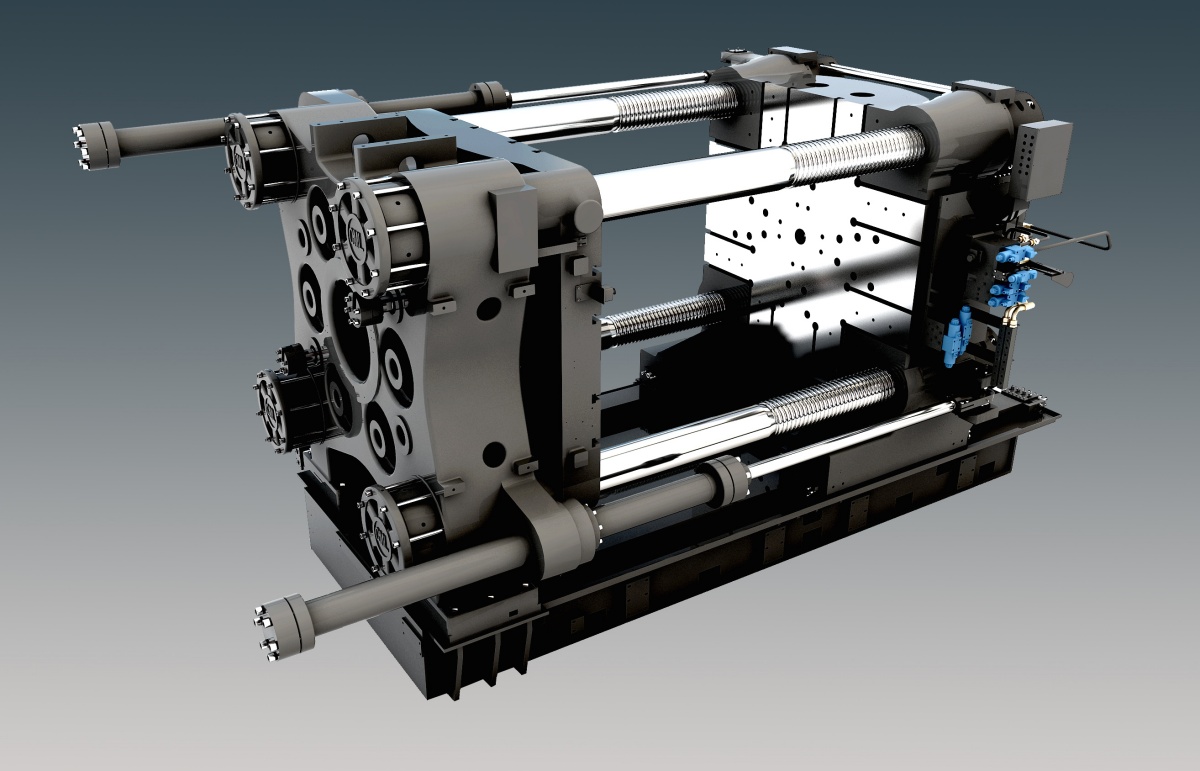

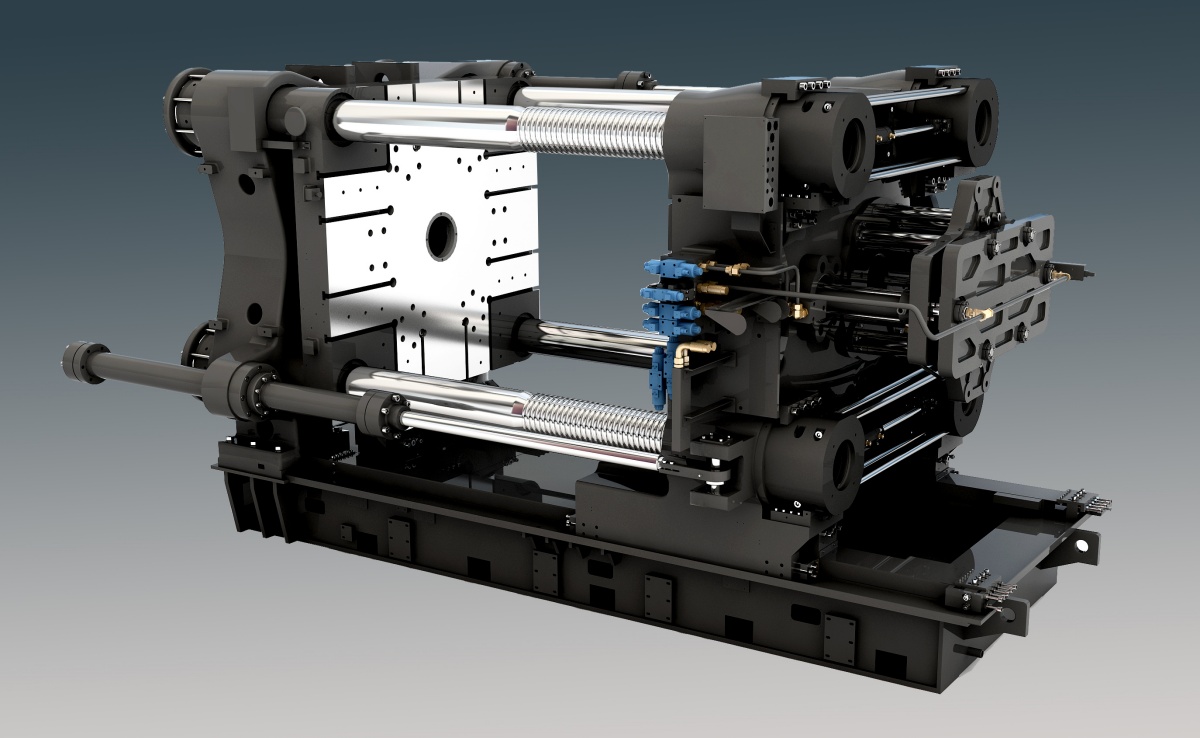

六油缸均布直压锁模结构

six cylinders direct clamping structure

● 合模动作及高压锁模由两组机械结构完成  ，稳定性更高 。 高压油缸呈环形分布  ，直接作用于模具安装面上  ，有效减少模具变形  ，更好地保护模具  ，更加有利于制品成型的质量

Mould open/close and high pressure clamping are done by two groups of mechanical structures.Machine motion stability is greatly enhanced.Six cylinders aligned hexagonally behind the moving platen act directly on the mould mounting surface, which contributes to less mould deformation and better mould protections,thus minimizing product defective rates.

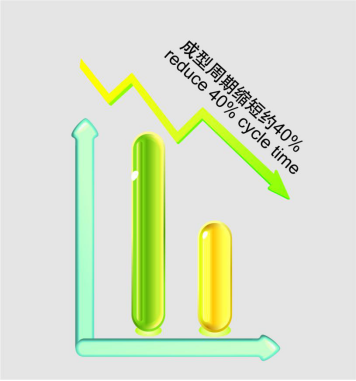

超短成型周期

Super-short cycle time

● 锁模干时间较传统艺术门焊机就缩短40%

Comparing to traditional toggle machine models,the dry cycle time is shortened by 40%

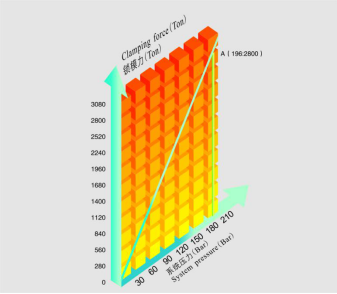

锁模力准确、稳定

High precision and stable clamping force

● 两板机的锁模力准确性、相对稳定、与系統心理压力不成比例  ，直线好   ，有益于养护机床  ，材质按顺序可靠性强  ，乐竞·体育APP下载安装程度高

High precision clamping force stability,repeatability,excellent-tuned linearity curve against the system pressure,these results in strengthening mould protection and minimizing product weight variations
